Moving Painting Storage

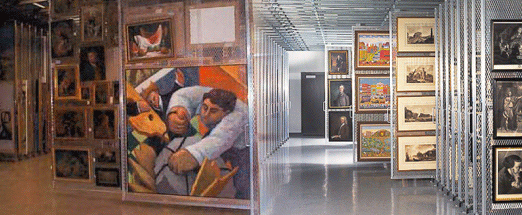

The Crystalizations Moving Painting Storage System was created in direct answer to the need for a safe, highly efficient method of storing masterpieces of art for future generations to enjoy. With the application of hi tech aerospace engineering design principles and materials, CSI Moving Painting Storage Systems have long been the standard against which other systems are measured. Our continuing dedication to perfecting our systems as well as our manufacturing and QC techniques, is visible in every system we deliver and install.

CSI Moving Painting Storage Systems safely store paintings and other works of art of virtually any size, materials, construction or frame in the most efficient manner possible. The design permits excellent density. Individual unit access with full pullout unit extension is optimal, thereby reducing the movement and handling of objects.  Aisles are always kept track-free. Safety and protection for the collection and museum staff is never compromised, and the floor space is clear.

Our systems utilize aerospace grade aluminum, which requires no maintenance. The vertical diamond pattern enables stainless steel "S" hooks to fit securely into the narrowest point of the opening, establishing security for the work of art that is hung. This prevents horizontal movement. On-center spacing of the units is completely flexible and can be adjusted after installation to meet your changing collection needs. And the entire system can be de-installed and relocated as needed.

Our proprietary aircraft-aerospace engineering and manufacturing techniques ensure superior tortional stability of the moving unit. This stability guarantees the smooth movement and ease of access of each unit, another reason why CSI systems are an excellent investment for today as well as tomorrow.

We also have considerable quality control procedures in place to inspect and approve every system component before it ever leaves our premises.  This assures an efficient installation at your facility.

System configurations are matched to museum needs.   Wall mounted units, stationary units and freestanding systems are available.












Fact Sheet

Safe, flexible storage and placement of paintings and other framed works of art.

Access: Individual unit access with full pullout extension is optimal, reducing the movement and handling of objects.

Aisles: Aisles are always track-free.

Aluminum: The all-aluminum unit is lightweight and rigid. The aluminum is completely non-reactive with no off-gassing. No paint is used.

Installation Options: Systems can be either ceiling or floor supported. Freestanding post and beam systems are also available as needed.

Maintenance: Materials are maintenance free.

Movement: Less than 15 pounds (7 kg) of force will set a fully loaded unit in motion.

New Installation Options: Conversion from a ceiling supported installation to a floor supported installation or vice-versa for future flexibility.

Proven Quality: For some 30 years our products have been designed, manufactured and installed using advanced aerospace materials and techniques.  CSI has successfully completed installations at more than 250 museums worldwide.  We are proud to have partnered with many museums for over 20 years.

Relocation: The entire system can be readily de-installed and relocated.

"S" Hooks: The CSI "S" hooks are made from stainless steel rods for a secure fit into the narrowest portion of the diamond opening.  This prevents horizontal movement. The long way dimension opening is vertical to ensure the secure hook placement.

Sizes: Units are provided in any size to meet your collection needs and to best utilize available space.

Spacing: On-center spacing of the units is completely flexible and can be adjusted after installation to meet your changing collection needs.

Surface Area: The hanging surface is flattened and expanded (diamond) aluminum sheet. The diamond pattern maximizes placement flexibility and density.

Tracks: Electro-galvanized steel, for strength and wear resistance.

Trolleys: Stainless Steel with Sealed Ball Bearing for longevity and smooth movement.

Vibration Dampers: Silicone Rubber Vibration Dampers surround the trolleys and isolate the vibration. The vibration is attenuated in all axes/directions.
